What Is a VRV HVAC System and Is It Right for You?

What Is a VRV HVAC System?

Imagine a five-storey office building in North Sydney, or a sprawling Wahroonga home with six bedrooms spread across two wings. A single split system cannot cover every room, and running a dozen separate units is a wiring and maintenance nightmare. That is exactly the problem a VRV HVAC system is designed to solve. VRV stands for Variable Refrigerant Volume, a term trademarked by Daikin, and it describes a multi-zone refrigerant-based system that connects one or more outdoor units to many indoor units across a large building.

Every other manufacturer uses the label VRF, short for Variable Refrigerant Flow, to describe the same technology. The two terms are interchangeable in practice; the distinction is purely commercial.

This article covers how the technology works, who it genuinely suits, how it stacks up against ducted and multi-head split alternatives, and what you need to think through before committing to the investment.

How Does a VRV HVAC System Actually Work?

A VRV HVAC system moves refrigerant directly from a central outdoor unit to multiple indoor units throughout a building, with each zone receiving precisely the amount of cooling or heating it needs at any given moment. Think of it like a central water main running through a building, with individual taps in each room. Each tap can be opened a little or a lot, independently of every other tap, so no room gets more than it needs.

The system has three core components working together:

1. One or more outdoor condensing units. These house the compressor and heat exchanger. Larger buildings may stack multiple outdoor units together to increase total capacity, and they are typically installed on rooftops or in plant rooms to keep noise away from occupied spaces.
2. A network of refrigerant pipework. Unlike ducted air conditioning, which pushes conditioned air through sheet-metal ducts, a VRV system runs copper refrigerant lines between the outdoor unit and each indoor unit. These pipes are far smaller and easier to route through existing building structures, which matters enormously in heritage buildings around the North Shore.
3. Multiple indoor units, each with an electronic expansion valve (EEV). The EEV is the key component at each zone. It meters refrigerant flow with precision, opening and closing continuously in response to the zone's real-time demand. This is what allows 20 or 30 rooms to operate independently on a single refrigerant circuit.

The outdoor unit uses an inverter-driven compressor, which modulates its speed continuously rather than switching fully on or fully off. A conventional fixed-speed compressor is like a car that can only drive at 100 km/h or sit stationary. An inverter compressor is like a car with a full range of speeds, cruising at exactly the pace the road demands. The result is significantly lower energy consumption during part-load conditions, which is most of the time in a real building. For a deeper look at how this technology works, see our article on inverter technology in air conditioners.

Heat Pump vs Heat Recovery: What's the Difference?

VRV and VRF systems come in two main configurations, and choosing the wrong one for your building is a costly mistake.

A heat-recovery system is the smarter choice for a building like a North Sydney office where the server room needs cooling year-round while the meeting rooms need heating on a winter morning. The waste heat pulled out of the server room is reclaimed and redirected to warm the meeting rooms, rather than being dumped outside. The upfront cost is higher, but the ongoing energy savings in a mixed-use building can be substantial enough to justify the premium within a few years of operation.

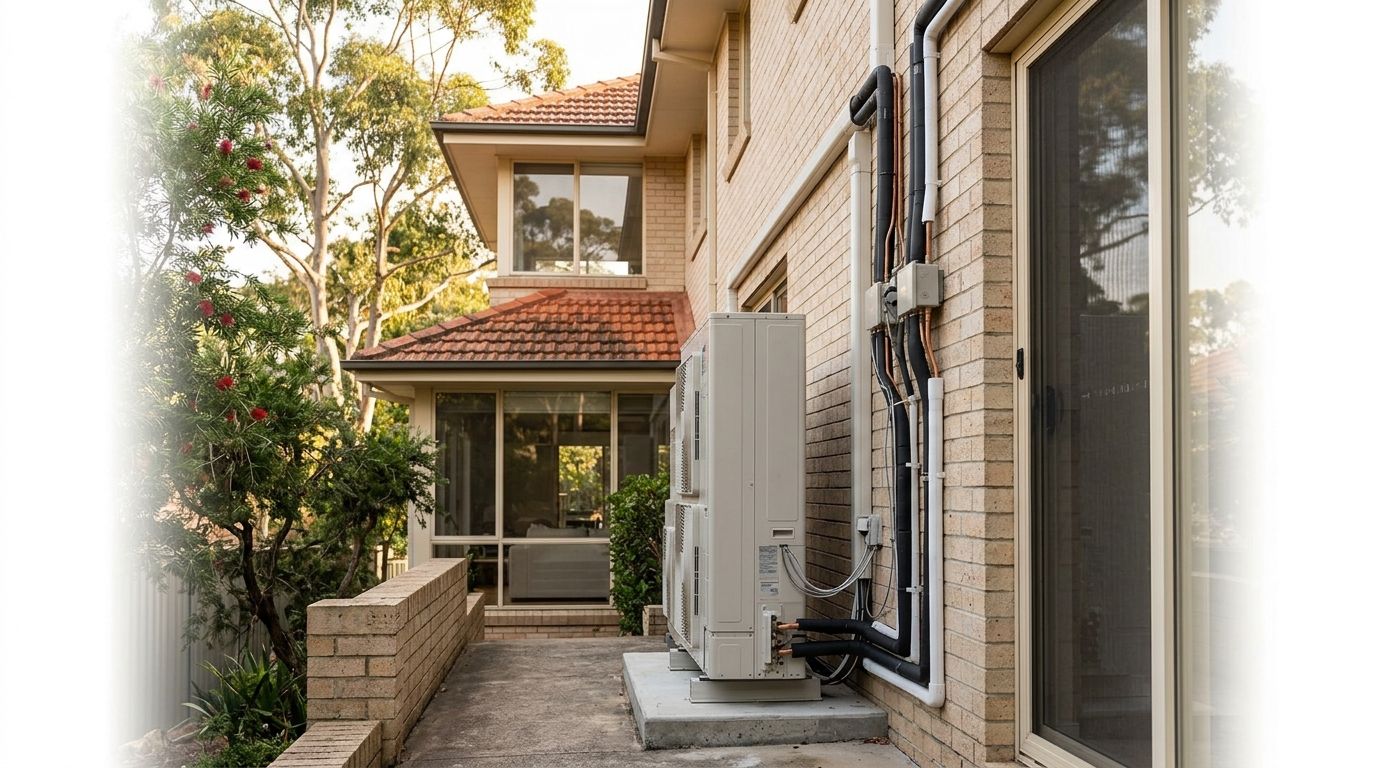

VRV HVAC vs Other Air Conditioning Systems: Which Is Right for You?

VRV and VRF systems sit at the top end of the air conditioning market in terms of both capability and cost. To decide whether the technology is justified for your building, it helps to compare it directly against the two most common alternatives installed across Sydney: multi-head split systems and ducted air conditioning. The table below sets out the key differences using realistic Australian installed cost figures for 2026.

For most Sydney homeowners, the choice comes down to the first two rows. A multi-head split system is the practical pick for a two or three-bedroom apartment in Newtown or a terrace in Balmain where you need independent control across a handful of rooms without the ceiling space for ductwork. If you have a larger home on the North Shore with the roof cavity to accommodate it, ducted air conditioning delivers whole-home comfort with a clean, grille-only finish that suits Federation and contemporary homes alike. For smaller properties or single-zone needs, split system air conditioning remains the most cost-effective and straightforward solution available.

VRV and VRF systems make genuine sense once you move beyond the residential scale. The two dominant products in the Australian commercial market are the Daikin VRV 5 series, which holds Daikin's trademark on the VRV name and is widely specified for large commercial buildings, with small commercial installations starting around $25,000 to $40,000 AUD depending on the number of indoor units. The Mitsubishi Electric City Multi (PUMY/PURY series) is also widely used, with Mitsubishi Electric marketing it under the VRF label. Both are engineered for buildings where dozens of zones need independent control, and both require specialist commissioning that goes well beyond a standard residential installation.

Key Benefits and Limitations of VRV HVAC Systems

VRV and VRF systems offer genuine performance advantages over conventional air conditioning, but they come with real trade-offs that any building owner or facilities manager needs to understand before signing off on the investment. Here is an honest assessment of both sides.

Benefits Worth Knowing About

• Precise zone-by-zone temperature control. Each indoor unit is managed independently through its own electronic expansion valve, so the boardroom on level three can be set to 22 degrees while the reception on level one runs at 24 degrees. There is no compromise between zones the way there is with a ducted system running a single thermostat.
• High energy efficiency. The inverter-driven compressor modulates output continuously to match real-time demand across all zones. In a building that is never fully occupied at once, this part-load efficiency translates to meaningfully lower electricity bills compared with fixed-speed alternatives. Heat recovery configurations push efficiency further by redirecting waste heat from cooling zones to rooms that need heating.
• No bulky ductwork. Refrigerant pipework is compact and can be routed through walls, ceiling voids and risers that would never accommodate sheet-metal ducts. This makes VRV and VRF systems the practical choice for heritage buildings, converted terraces in Newtown or multi-storey offices in Chatswood where duct runs are simply not feasible.
• Quiet indoor operation. Indoor units typically operate between 22 and 34 dB(A), which is quieter than a normal conversation. For a law firm or medical practice where background noise matters, this is a real advantage.
• Long system lifespan. A well-maintained VRV or VRF system can run reliably for 15 to 20 years, which helps justify the higher upfront cost when spread across the asset's life.
• Scalability. Additional indoor units can be added to an existing refrigerant circuit over time, provided the outdoor unit has spare capacity. This suits growing businesses that want to stage their investment.

Limitations to Factor In

• High upfront capital cost. Even a modest commercial VRV installation starts at $25,000 to $40,000 AUD. Larger systems for multi-storey buildings can exceed $80,000. The payback period on energy savings is measured in years, not months.
• Specialist installation required. VRV and VRF systems must be installed and commissioned by refrigerant-certified technicians holding Arctick registration under Australian regulations. The commissioning process is significantly more complex than a standard split system, and errors during installation can cause long-term reliability problems.
• Refrigerant leak risk across long pipe runs. The refrigerant circuit in a large building can span hundreds of metres of copper pipework. A leak anywhere in that network affects the whole system, and locating the fault in a multi-storey building is time-consuming and expensive.
• Higher ongoing servicing costs. Routine maintenance on a VRV or VRF system costs considerably more than servicing a standard split system, both because of the system's complexity and because the technicians required to work on it command a premium rate.

For most Sydney homes with three bedrooms or fewer, the honest recommendation is to look elsewhere. A three-zone Daikin Cora multi-head split system, installed for roughly $6,000 to $10,000 AUD, delivers independent room-by-room control, strong energy efficiency and straightforward servicing without the complexity or cost of a full VRV setup. Keeping that system in good shape over its lifespan is also far simpler, and regular air conditioning servicing from a qualified technician will keep it running efficiently for well over a decade.

Frequently Asked Questions About VRV HVAC

What does VRV stand for in HVAC?

VRV stands for Variable Refrigerant Volume, a term trademarked by Daikin to describe its multi-zone refrigerant-based air conditioning technology. Every other manufacturer uses the equivalent term VRF, which stands for Variable Refrigerant Flow. The two labels describe the same underlying technology and are used interchangeably across the industry.

What is the difference between VRF and VRV systems?

There is no technical difference between VRF and VRV systems. Daikin holds the trademark on the VRV name, so competitors such as Mitsubishi Electric market their equivalent products under the VRF label. Both systems use an inverter-driven outdoor unit connected to multiple indoor units via refrigerant pipework, with each zone controlled independently.

How much does a VRV system cost to install in Australia?

A small commercial VRV or VRF installation in Australia typically starts at $25,000 to $40,000 AUD, depending on the number of indoor units and the complexity of the pipework run. Larger multi-storey systems can exceed $80,000. These figures include supply, installation and commissioning by Arctick-registered technicians, which is a legal requirement under Australian refrigerant handling regulations.

Is a VRV system suitable for a residential home?

For most Australian homes, a VRV or VRF system is not the right fit. The upfront cost and installation complexity are difficult to justify when a quality multi-head split system delivers independent zone control at a fraction of the price. A three-zone Daikin Cora multi-head split system, for example, covers most residential needs for $6,000 to $10,000 AUD installed.

Is a VRV HVAC System the Right Choice for Your Property?

VRV and VRF systems are genuinely impressive technology, but they are built for a specific job. Large commercial buildings, strata complexes, hotels and multi-storey offices across Sydney are where this technology earns its cost. If your building needs independent climate control across dozens of zones, a VRV or VRF system is hard to beat. For most homeowners, a quality multi-head split system or ducted system will deliver the comfort you need at a far more manageable price.
